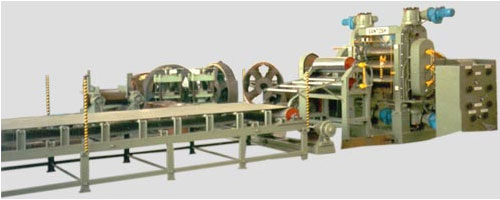

Fabric Frictioning / Coating line with 4 Roll Inverted 'L' Calender in Uni-drive, fitted with Anti-friction Roller Bearings for sheeting with fine gauge as end products, Duplex colour assembly of sheets, skim coating on both side of fabrics, to avoid double pass in 3 roll Calenders etc.
USES :
SANTOSH with decades of expertise in design and production of rubber processing machinery gives precise CALENDERS designed to handle a variety of products . Like sheeting for Industrial lining, hospital sheeting, films, frictioning of tyre fabrics for Bycycle/motor cycle /Auto tyres, hoses beltings, profiling, Cushion gum, single coating, laminating doubling etc. Special Calenders for profiles & Inner liner can be offered.

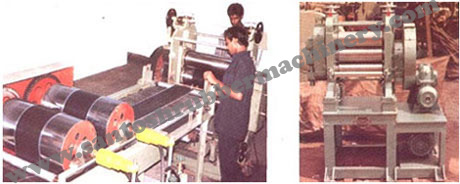

SANTOSH 3ROLL 6'' x 18'' , 8''x 24 '' Calenders are most popular for cushion/tapes/treads. These Calenders are most economical for specific purpose and avoids extra expenditure due to simplicity in design. Accuracy demanded are met with precise tolerances in manufacturing.
|
TECHNICAL SPECIFICATIONS : |
Sizes Available : |
DIA (mm) |
150 |
200 |
250 |
300 |
400 |
450 |
560 |
FACE (mm) |
450 |
610 |
750 |
910 |
1220 |
1370 |
1700 |
Types : 2 Roll - vertical, 3 roll 'I" Type, 4 Roll 'L', Inverted L, S or Expanded S |
Drive : AC or DC Variable Line Speed Gear Drive, Semi-Uni-Drive & Uni-Drive |
|
Optional Features : Preloading, Cross-Axis. |
